Polt M Heckmotor 36V, 600W eingespeicht in 26' Laufrad

129,95 € * 249,95 € * (48,01% économisé)

Prix dont TVA plus frais de port

Prêt à expédier immédiatement,
délai de livraison env. 2-5 jours ouvrés en France

  • PoltM26
Polt M E-Bike Hinterradmotor 600 W, 36 V, eingespeicht in eine 26'...plus
Informations sur le produit "Polt M Heckmotor 36V, 600W eingespeicht in 26' Laufrad"

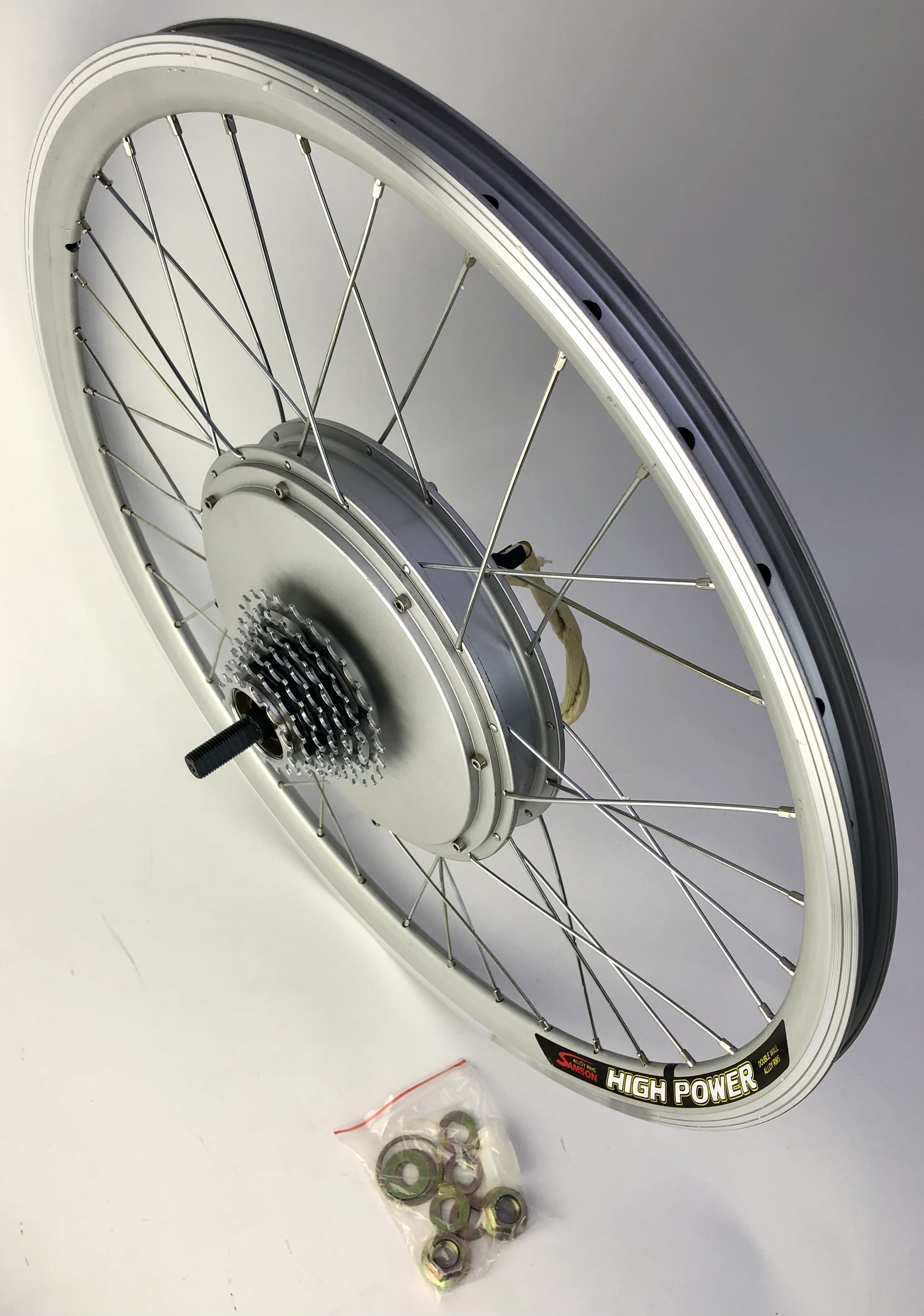

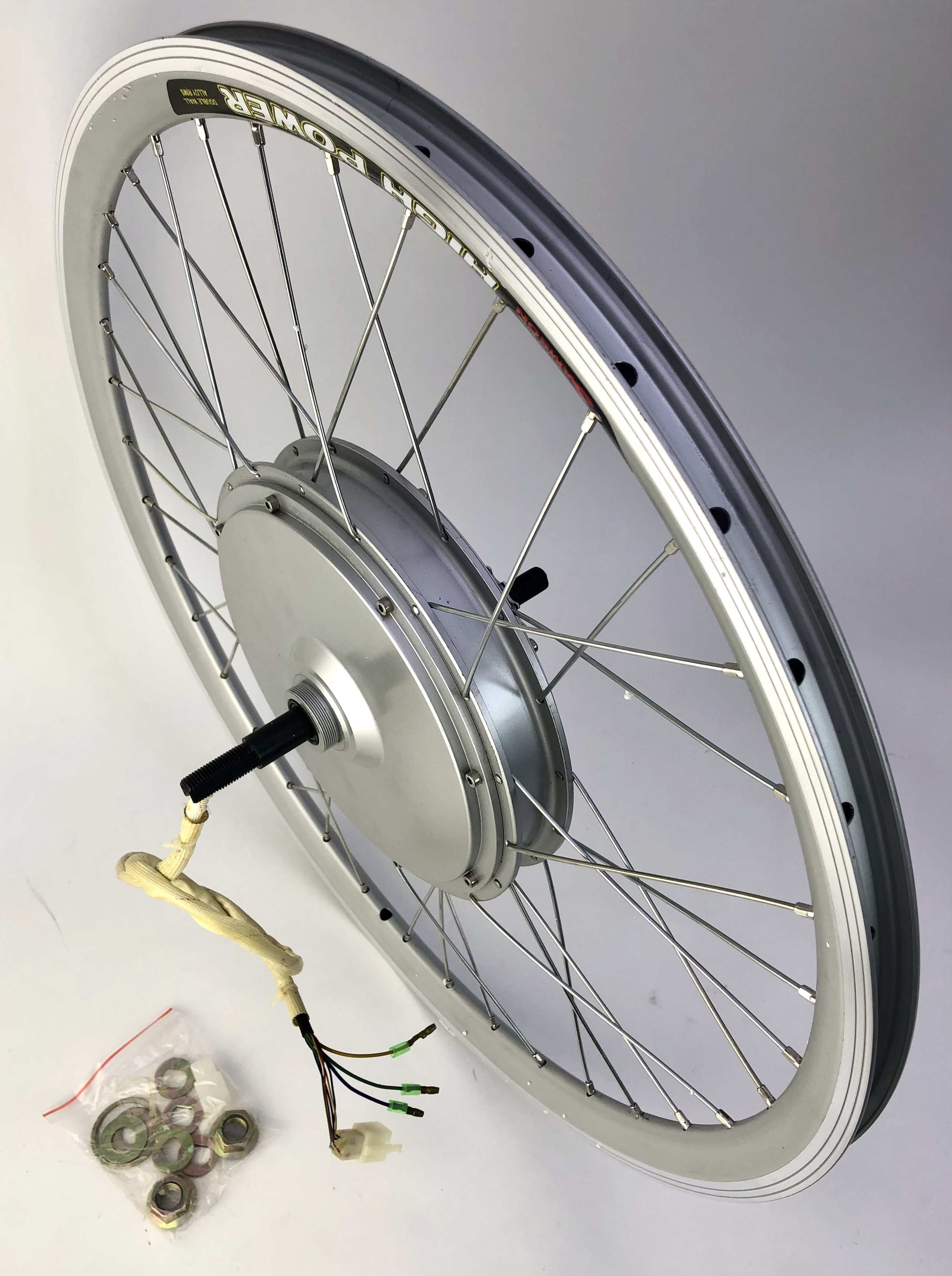

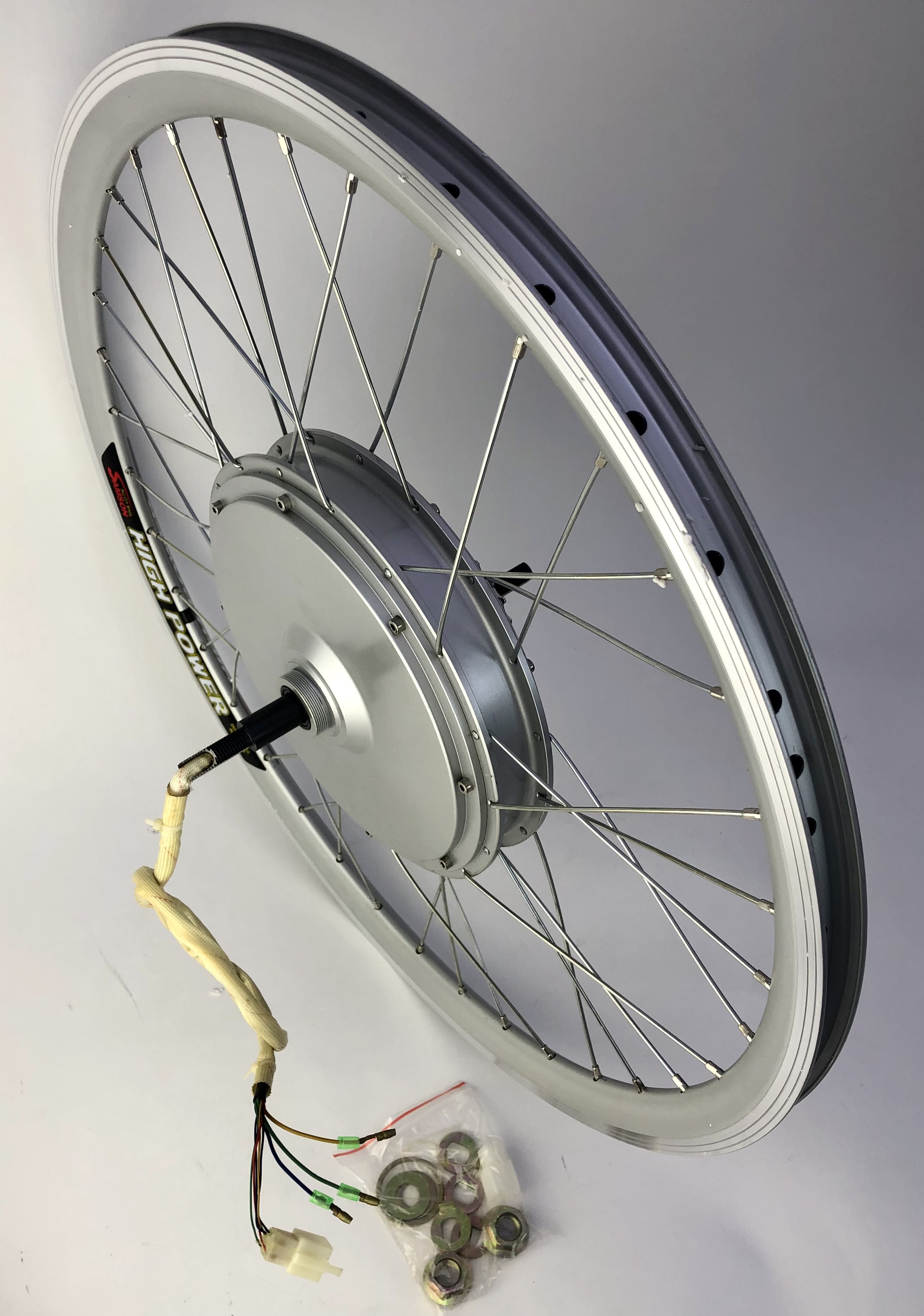

Polt M E-Bike Hinterradmotor 600 W, 36 V, eingespeicht in eine 26' Felge

Allgemeines:

Der Heckmotor bzw. Hinterradmotor befindet sich, wie der Name schon verrät, im Hinterrad des Fahrrads.  Durch diese Lage ist das Fahrrad hinten etwas schwerer als vorne und gibt dem Motor viel Schubkraft, die hilft, sich vorwärts zu bewegen. Der Hinterradmotor kann mit Kettenschaltungen gefahren werden und bietet somit eine große Übersetzungsbandbreite.

General:

The rear motor or rear wheel motor is, as the name suggests, located in the rear wheel of the bicycle.  This location makes the rear of the bike slightly heavier than the front and gives the motor plenty of thrust to help move forward. The rear motor can be used with derailleur gears and thus offers a wide range of gear ratios.

Technische Details Motor / Technical details motor:
  • Bauart / Type: Direktläufer / direct drive
  • Spannung / Voltage: 36V
  • Nennleistung / Rated Power: 600W
  • Geschwindigkeit / Speed: 25 km/h
  • Drehmoment max / Torque max:  44,51 N.m
  • Motordurchmesser / Diameter Motor: ~ 240 mm / 9,45 inches
  • Einbaubreite / Installation width: 150 mm / 5,90 inches
  • Gewicht / Weight: ~ 5,7 kg / ~ 12,56 lbs
  • Motoranschluss / Motor connection: Kabel / cable
  • Speichen / Spokes: 12G + 13G
  • Speichenlöcher / Spoke holes: 36 Löcher / 36 holes
  • Bremsen / Brakes: Scheibenbremsaufnahme / Discbrake mount
  • Position des Kabels / Cable position: links / left
  • Farbe / Color: Silber / Silver
  • Gehäuse / Housing: Alu Druckguss / die-cast aluminium

Felge / Rim:

  • Bauart / type: doppelwandig / double wall
  • Größe / size: 26 Zoll / 559
  • Breite / Width: 2,5 cm / 0,98 inches
  • Löcher / holes: 36
  • Seitenwand / sidewall: CNC
  • Material / material: Alu, pulverbeschichtet / Aluminium, powder coated

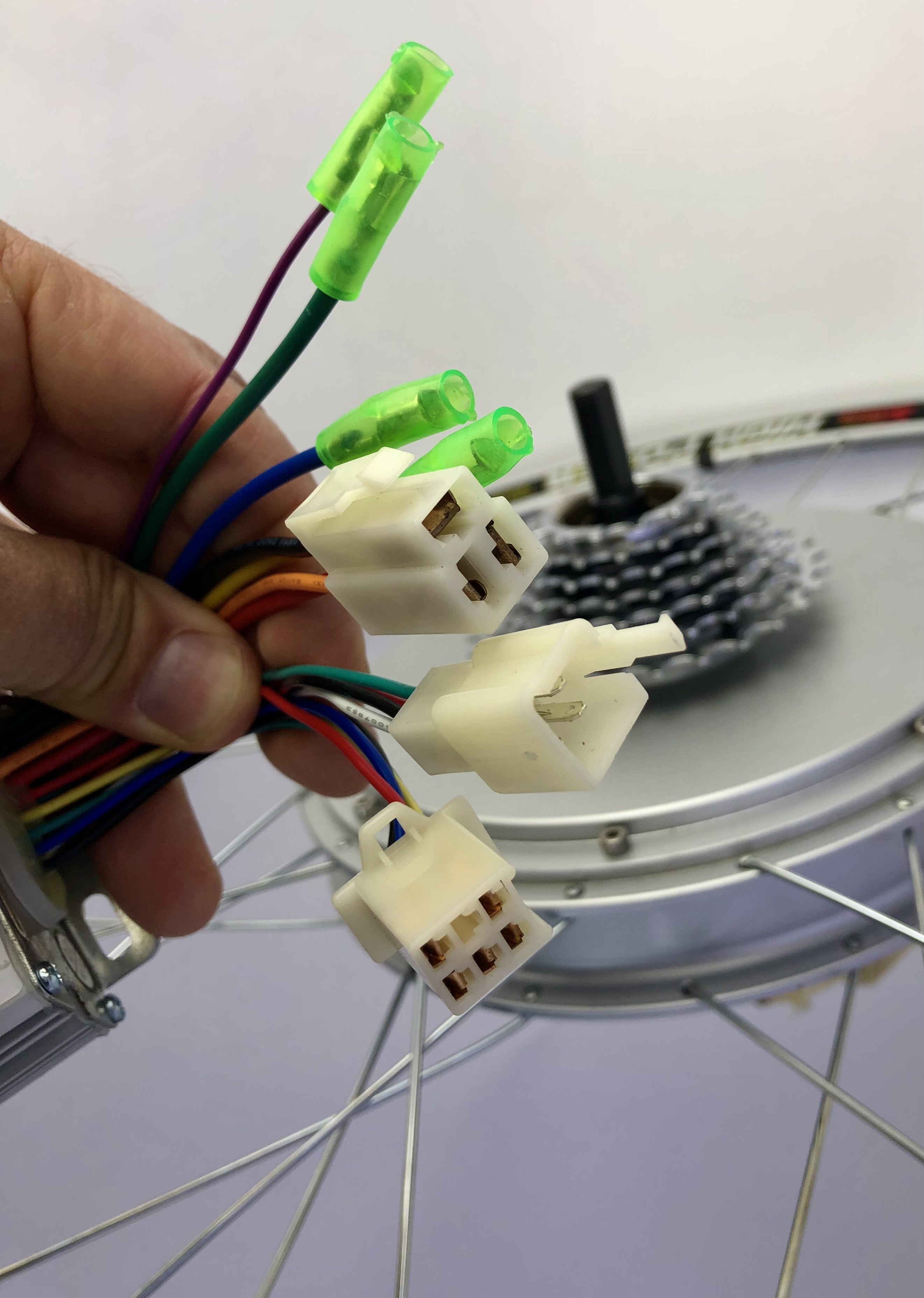

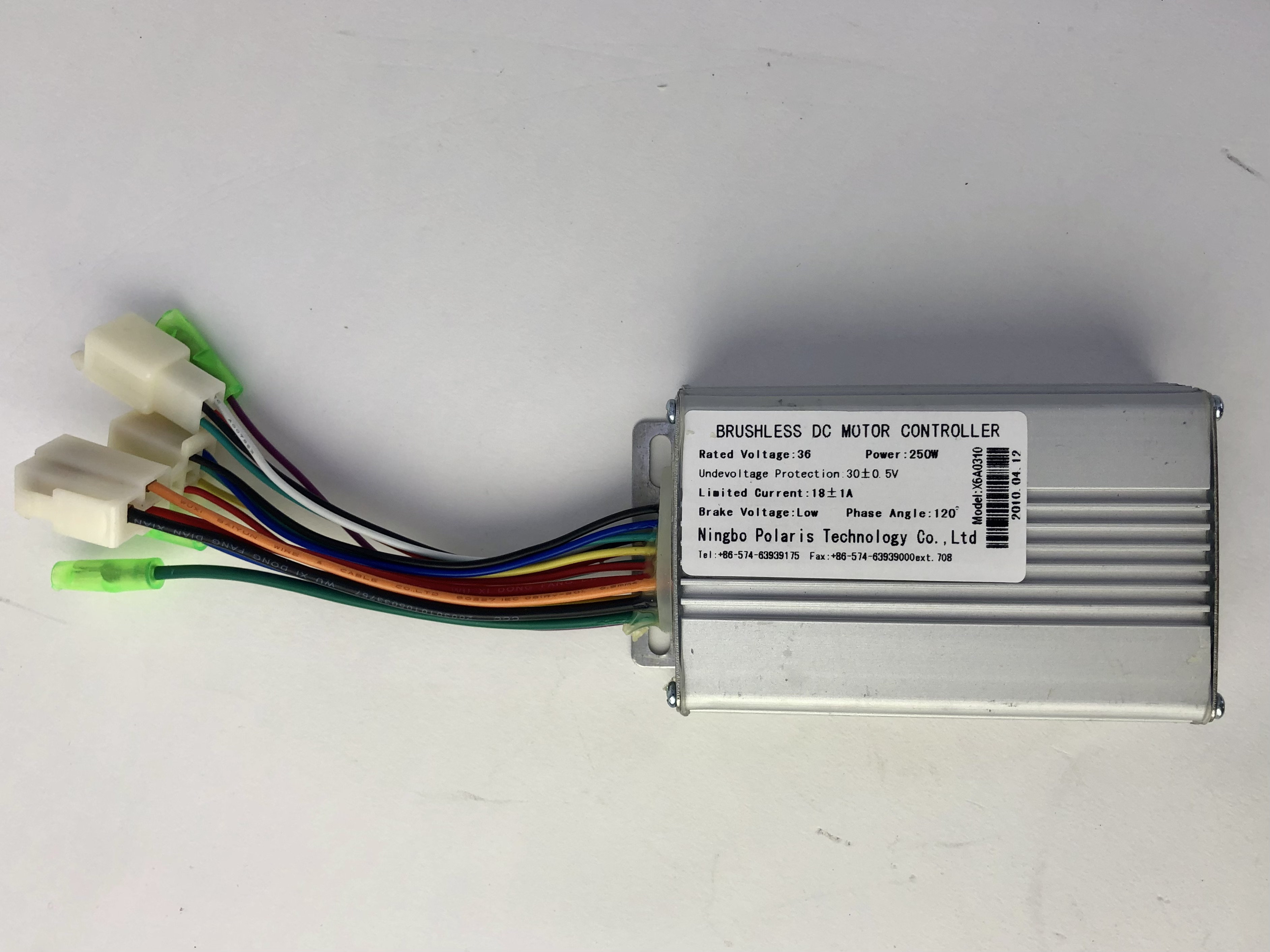

Kontroller / controller:

  • Bauart / type: bürstenloser DC Motorkontroller / brushless DC motor controller
  • Nennspannung / rated voltage: 36
  • Leistung / power: 250W
  • Unterspannungsschutz / undevoltage protection: 30± 0,5V
  • Strombegrenzung / limited current: 18 ± 1A
  • Bremsspannung / brake Voltage: niedrig / low
  • Phasenwinkel / phase angle: 120°

Laufrad / Wheel:

  • Radgröße / Wheel Size: 26 Zoll
  • 7-fach Kassette / 7-speed Cassette
  • Speichendurchmesser / spoke diameter: 2,3 mm / 0,098 inches

 Montagezubehör ist gemäß der Abbildung im Lieferumfang enthalten. / Mounting accessories are included as shown on the pictures.
